Haav

Simulation

Study #1

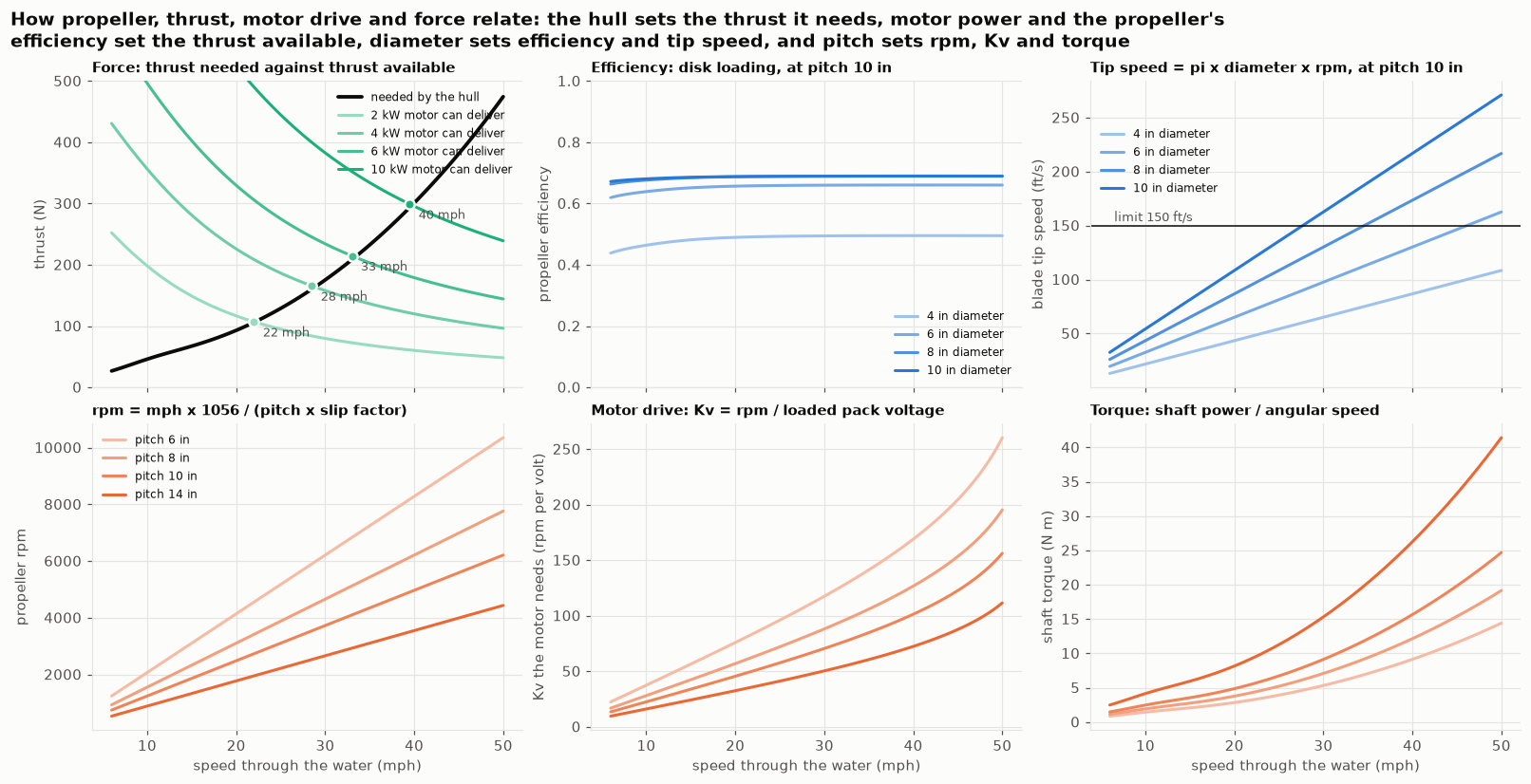

Six charts relating propeller, thrust, motor drive and force against boat speed: thrust needed by the hull against thrust available from 2, 4, 6 and 10 kilowatt motors; propeller efficiency by diameter; blade tip speed against a 150 feet per second limit; propeller rpm by pitch; the motor Kv needed; and shaft torque.

Open full size
